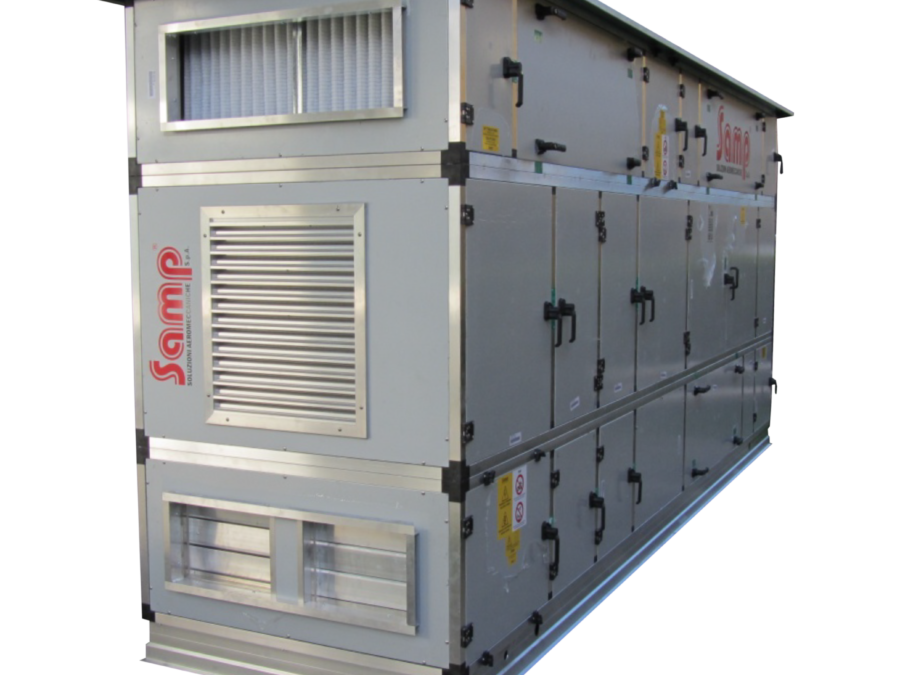

The air handling units AHU-HOR are specifically designed for the control of the room temperature required in operating theatres, such as fresh air change, temperature and humidity control, filtration and pressure control.
Available in 5 standard sizes, from 2.000 to 11.500 m³/h. They can be in two versions, BASIC and RECOVERY.
BASIC: with extraction fan, double stage of filtration on supply air, cooling and dehumidification, heating, humidification by steam from the network or self-produced.
RECOVERY: with extraction fan, double stage of filtration on supply air, cooling and dehumidification, heating, humidification by steam from the network or self-produced and air to water heat recovery system, complete with all accessories.
The units are complying with the regulation 1253/2014.
All units are made in one single piece, complete with power and control panel, with all components electrically and hydraulically connected, providing to the customer a complete plug&play system.
All air handling units AHU-HOR are designed and built to eliminate any chemical or bacterial contamination inside the units.
We can offer also Active Air Sanitisation Systems with the patented technology of photocatalysis, installed directly on the units.
